Toplighting Grow Light – 1:1 HPS Replacement Series
High Efficiency LED for Commercial Greenhouses. Up to 50% Energy Saving.
Why Make the Switch to Our 1930e Led Toplighting Modules?
Instant Infrastructure Upgrade: Designed for direct 1:1 replacement of traditional 1000W 1150W HPS fixtures. Use your existing layout and wiring to save thousands in installation costs.
True Full Spectrum: Unlike HPS (red-heavy) or MH (blue-heavy), our LEDs provide a continuous spectral curve that supports plants from seed to harvest, improving both terpene profiles and potency.
Operational Longevity: While HPS bulbs require annual replacement and suffer from rapid light decay, our LED toplightings are built for 50,000+ hours of consistent output, drastically lowering long-term maintenance.
Smart Dimming & Control: Fully compatible with master controllers for centralized daisy-chain management, allowing you to simulate sunrise/sunset and adjust intensity based on plant needs.

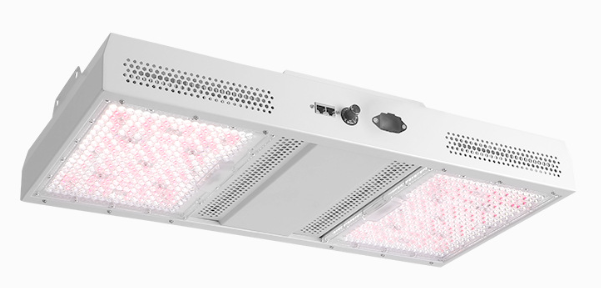

The 1930E: Ultra-High Density Series
Engineering Excellence for Maximum Photonic Intensity
Our the patented toplighting grow light module features an ultra-high-density diode array. By packing more premium chips into the module, we achieve a massive PPFD and industry-leading thermal stability. This is the choice for high-end facilities where every micromole counts and peak performance is a requirement.
FEATURES & BENEFITS
- Designed for enhancing plant growth and optimizing light availability to less exposed areas
- Dimmable and compatible with most controllers on the market via RJ12 Data Cable (integrated with power cord)
- PPE 2.8 µmol/J. Enhances yield and boosts growth up to 30% by nurturing lower buds for harvest instead of cutting them
- Full spectrum utilizes deepred, far red and blue light
- Quick to uninstall between setting up and taking down runs
- Budget-optimized manufacturing allows for rapid deployment across large facilities with a faster ROI
Parameter
| ITEM | 1930E Specification |
|---|---|
| Model | 1930E |
| Dimensions | 550 x 630 x 80 mm |
| Power | 320W |
| Housing Material | Aluminum |
| Control Mode | 0-10V Dimmable |
| Light Source | LED |
| Input Voltage (AC) | 100-277V |
| PPF | 2016 µmol/s |
| PPE | 2.6-2.8 µmol/J |
| Color Temperature | 5000K White + 660nm Red + 460nm Blue |
| Package Dimensions | 690 x 320 x 175 mm |
| IP Rating | IP65 |
| Beam Angle | 90° |
| Net Weight (N.W.) | 6.5 KG |

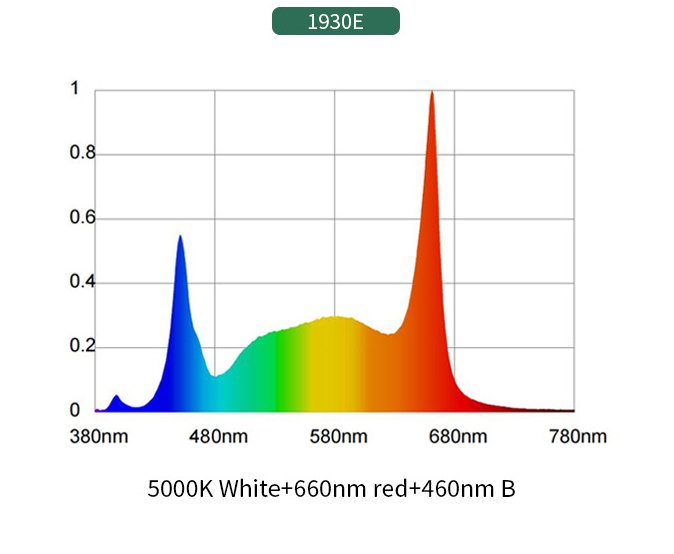

Spetrum Map

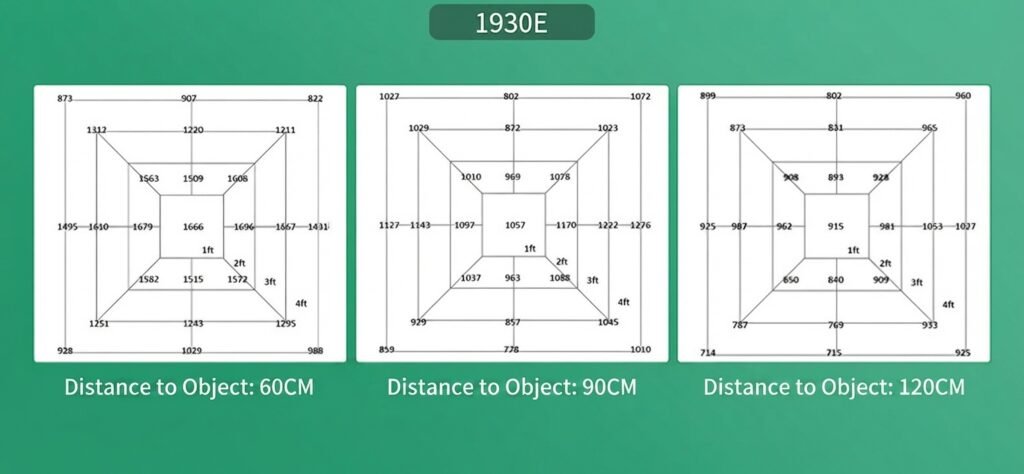

PPFD Map
The 1930 PRO: Uniform Lighting Distribution
Optimized Coverage with Dual-Sided Light Distribution
Our most popular model in the 1930e-style lineup. This “Best-Seller” features a unique dual-sided emitting surface. This top lighting grow light module creates a much wider and more uniform footprint than single-point sources. It effectively eliminates “hot spots” directly under the light while boosting the light levels between fixtures.
FEATURES & BENEFITS
- Uniformity is Profit. Dual light emission provides superior uniformity across the canopy, ensuring the plants between rows receive as much light as those directly underneath
- Wider Lllumination Spread for covering a larger footprint with fewer fixtures, reducing the total equipment investment for large facilities
- Seamless 1:1 HPS Infrastructure Integration
- 720 Watt led grow lights
- PPE 3.0 µmol/J. PPF 2304 µmol/s
- Full spectrum with enhanced red and blue light for all stages of plant growth
- 0-10V Dimming (0-100%) & Daisy Chained
Parameter
| ITEM | 1930PRO Specification |
|---|---|
| Model | 1930PRO |
| Dimensions | 550 x 630 x 80 mm |
| Power | 720W |
| Housing Material | Aluminum |
| Control Mode | 0-10V Dimmable |
| Light Source | LED |
| Input Voltage (AC) | 100-277V |
| PPF | 2304 µmol/s |
| PPE | 3.0-3.2 µmol/J |
| Color Temperature | 5000K White + 660nm Red + 395nm UV |
| Package Dimensions | 690 x 320 x 175 mm |
| IP Rating | IP65 |
| Beam Angle | 90° |
| Net Weight (N.W.) | 6.5 KG |
Spetrum Map

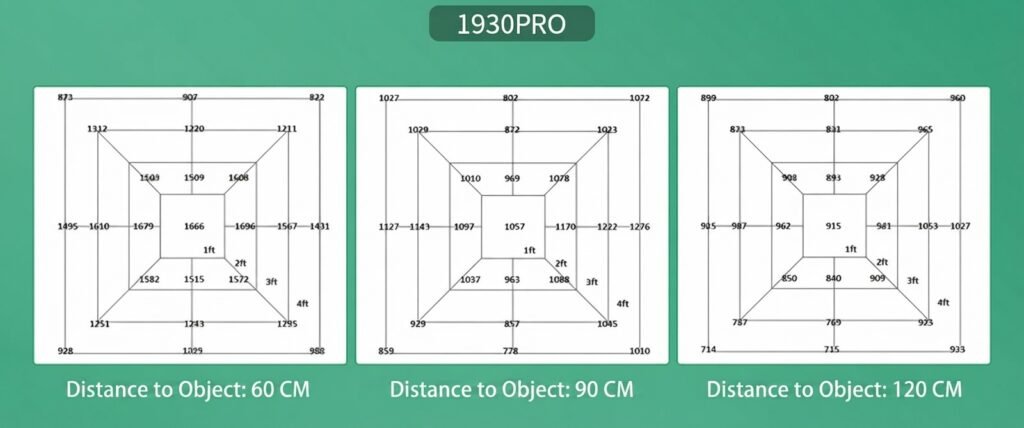

PPFD Map

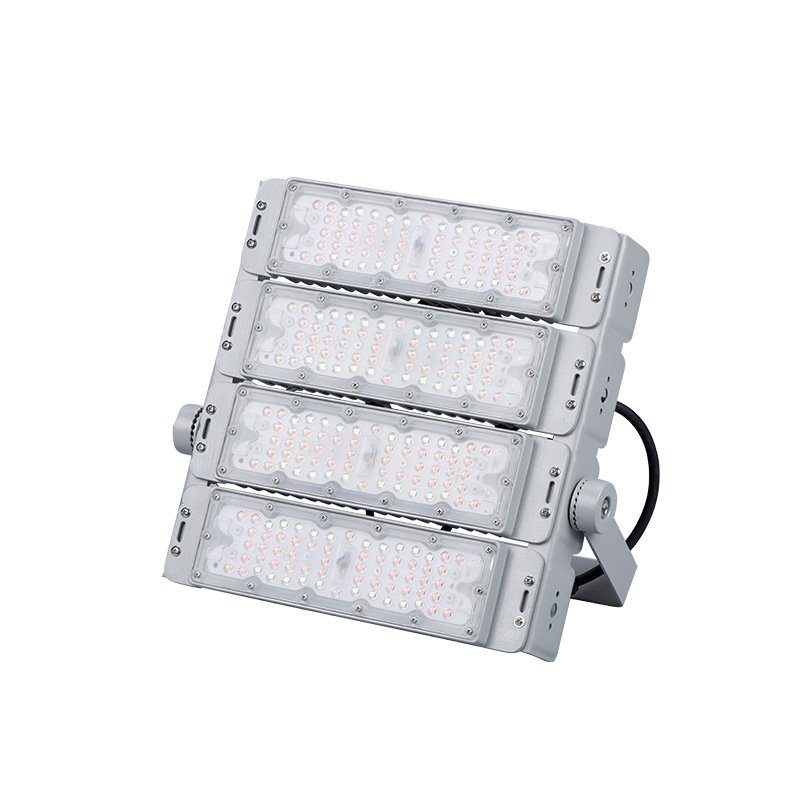

The Patent Elite: Ultra-High Density Series
Engineering Excellence for Maximum Photonic Intensity
Our the patented toplighting grow light module features an ultra-high-density diode array. By packing more premium chips into the module, we achieve a massive PPFD and industry-leading thermal stability. This is the choice for high-end facilities where every micromole counts and peak performance is a requirement.
FEATURES & BENEFITS
- Designed for enhancing plant growth and optimizing light availability to less exposed areas
- Dimmable and compatible with most controllers on the market via RJ12 Data Cable (integrated with power cord)
- PPE 2.8 µmol/J. Enhances yield and boosts growth up to 30% by nurturing lower buds for harvest instead of cutting them
- Full spectrum utilizes deepred, far red and blue light
- High-performance LED array with 160° beam angle delivers precise, directed light to the underside of the canopy, triggering photomorphogenesis in shaded areas
- Quick to uninstall between setting up and taking down runs
- Budget-optimized manufacturing allows for rapid deployment across large facilities with a faster ROI
Parameter
| ITEM | Module Light Specification |
|---|---|
| Power | 50W / 100W / 150W / 200W |
| Light Source | 3030 |
| Dimensions | 340*76*220mm / 340*156*220mm / 340*236*220mm / 340*316*220mm |
| Input Voltage (AC) | 85-265V |
| Frequency | 50-60Hz |
| IP Rating | IP65 |
| Lifespan | 30,000 H |
| Spectrum Type | Full Spectrum |
| LED Quantity | 64 / 128 / 192 / 256 PCS |
| Power Factor (PF) | > 0.9 |
| Beam Angle | 60° / 90° / 120° |
| Housing Material | PC + Aluminum |
| Warranty | 3 Years |
| Installation Height | 1.5-2M |
| Illuminated Area | 15-20 M² |
| Package Dimensions | 350*105*235mm / 350*235*145mm / 350*280*145mm / 350*345*145mm |
